With this checkbox, you can choose to see the
virtual adapters addiationally to the physical adapters.
|
5
|
The maximum-speed of the adapter.
|
|
|
1 In

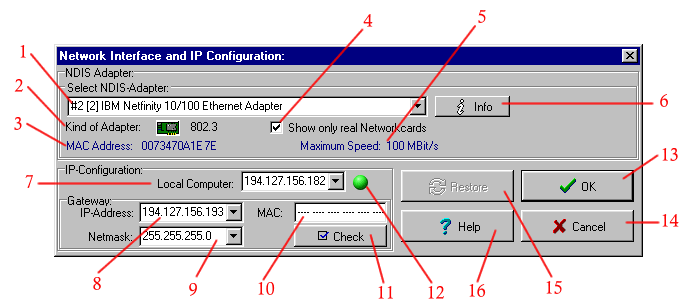

the adapter-field, you can choose the network adapter. After you selected an
adapter, it's ip-address, gateway and subnet will be took over.
2 Show the standard supported by the adapter.
3 The physical(MAC-) address of the adapter.
7 This textbox contains
the ip-address. |
|
6 A
click on the "Info"-button shows additional Informations about the network adapter..
13 The "OK"-button
confirms and saves the settings.
14 The "Cancel"-button discards
all settings since the last saving. |
|
8
|
This textbox contains the ip-address of the
gateway.
|
9
|
Here you can find the subnetmask, over which
the gateway will be contacted.
|
10
|
The physical (MAC-)address of the gateway.
You can request it by clicking 11.
|
11
|
With a click on this button you can request
the gateway MAC-address.
|
12
|
This lamp indicates the status of the chosen
adapter. It shows, how far the actual settings agree with the Windows-settings.
Following conditions are possible :
|
If the lamp is grey, no informations
about the actual adapter could be found. Please contact technical support.
|
|
If it is orange, the actual choosen
adapter has no bindings to the TCP/IP stack. This can be happen, if the adapter
is used in a homogenous NetBEUI environment.
|
|
A green lamp indicates a binding to
the TCP/IP stack and that all settings agree with the Windows-settings for
this adapter.
|
|
The lamp becomes red, if the adapter
has bindings to TCP/IP, but at least one setting doesn't agree with the Windows-setting
for this adapter.
|
|
15
|
The button "Restore" loads the settings assigned
by Windows to this adapter. All changes made will be discarded.
|
16
|
The button "Help" calls this help-site.
|
|
